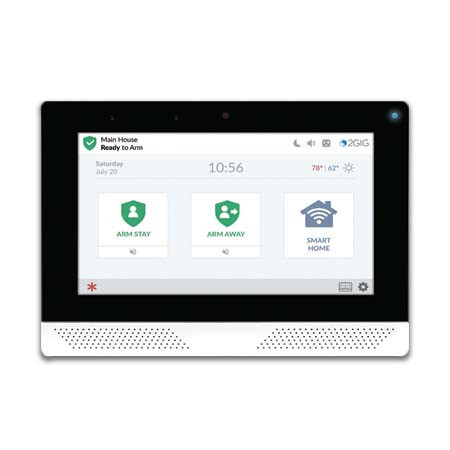

2GIG-EDG-NA-AA 2GIG EDGE Security & Home Automation Control Panel - AT&T

Features:

• Touchless convenience Integrated face recognition and Bluetooth technologies significantly streamline operation
• Sleek, thin design is easy-to-use with updated and intuitive UI providing one button access to smart home functions
• Live view video - cameras and doorbell cameras work with the 2GIG EDGE panel, with up to 8 different camera feeds viewable directly from the panel, view 4 camera feeds at a time
• Z-Wave 700 series supports large ecosystem of devices
• Superb audio quality with twice the speakers, double the microphones, added noise and echo cancellation with two-way communication
• Voice control through Google Assistant, Amazon Echo and Siri Shortcuts
• Ability to customize with controls, rules, scenes, and notifications
• Compatible with eSeries encrypted sensors
• Alarm.com compatible
• Includes Screw Terminal Connection Transformer

The 2GIG EDGE™ panel sets a new benchmark in form and function with its sleek design that is thinner and more powerful than ever. Our on the edge processing technology is the difference that enables touchless disarm and the industry-first home security system with built-in face recognition and analytics within the panel itself – so private data stays private for greater peace of mind.
2GIG Edge's cutting-edge enhancements include double the viewing area, higher resolution, two speakers and dual microphones, delivering superb audio quality and 2-way voice communication. The 2GIG EDGE panel is not only easy on the eyes, it’s incredibly easy to use. The stunningly bold industrial design has a big, bright display with an updated user interface (UI) providing one button access to security and smart home functions, as well as a quick on-screen control of all Smart Areas. With smart home capabilities, the 2GIG EDGE panel is packed with features and your competitive advantage in selling the evolution of security and automation.

Specifications

Panel Features

• Face recognition disarm
• Bluetooth disarm
• Glass break detection with advanced audio analytics
• Video live view on the panel
• Alarm.com cameras on the panel
• Doorbell on the panel with 2-way audio and door unlock
• ONVIF camera support
• Photo capture while viewing on a 7" LCD – RGB: 16.7 million colors
• Data privacy
• 2GIG secure 6-digit personal codes

Security

• One-touch arming
• eSeries encrypted sensors
• Emergency (fire, medical, police)
• 100 users
• 100 wireless zones
• 2 wired zones
• Wired bell output
• 32 keyfobs
• 8 keypads
• 2 open collector outputs
• Image sensor 3

Audio

• Best in class 2-way voice
• Dual microphones (digital)
• Noise and echo cancellation
• Front firing speakers
• Siren/piezo
• Annunciations and chimes

Automation

• Integrated Z-Wave Plus V2 (700 series)
• Z-Wave S2
• Create and execute scenes and schedules

Voice Controls

• Google Assistant
• Amazon Echo
• Siri Shortcuts

Communication

• 4G LTE (Verizon and AT&T)
• 3G fall-back
• Wi-Fi 2.4 GHz (802.11 b/g/n, WPA-TKIP/WPA2-AES)
• Wi-Fi access point

Communication

• 4G LTE (Verizon and AT&T)
• 3G fall-back
• Wi-Fi 2.4 GHz (802.11 b/g/n, WPA-TKIP/WPA2-AES)
• Wi-Fi access point

Operating Specifications

• Operating temperature: 32°F to 104°F (0°C to 40°C) Max humidity 90%
• 100-240VAC 50/60Hz 1.7A 14VDC adapter Lithium-polymer backup battery (24 hrs.)
• Dimensions: 7.5 L x 5.625 W x 1.0 D (in)
• 19.05 L x 14.29 W x 2.54 D (cm)
• Weight: 1.39 lbs | 0.63 kg

Certifications

• FCC: Part 15, Part 68
• ISED, RSS210/RSS247
• UL 985, UL 1023, UL 2017, ULC-S545, ULC S304 (for Canada)
• SIA CP-01
• CSFM BML Listed
• PROP-65, ROHS

Firmware Updates

• Over-the-air
• USB

Package Contents

• Power Supply, Mounting Kit, Quick Install Guide & Regulatory Documentation

Warranty

• Limited 3 years
