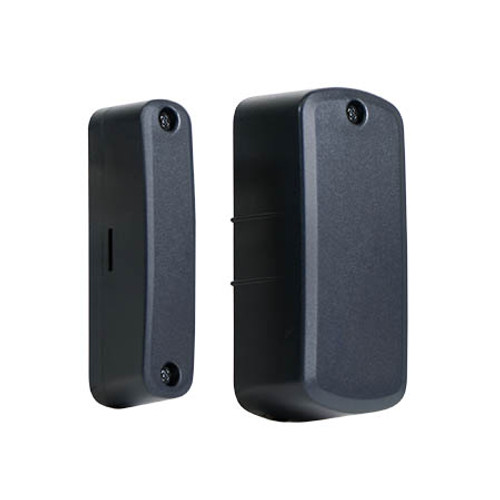

2GIG-DW30-345 2GIG Outdoor Wireless Contact Sensor

Features:

• Sends a notification to the alarm panel when a door, gate or window is opened or closed
• Enables two unique zones: One is for an internal magnetic reed switch while the second is for a normally-closed circuit that can have external devices wired to it
• Can be painted to match its mounting surface
• Sensor Dimensions: 4.6 x 2.1 x 1.5 inch
• Magnet Dimensions: 4.1 x 1.0 x 1.1 inch
• Battery life: Up to 5 years
• Wireless Signal Range: 350 ft, open air with Wireless Control Panel
• Transmission Frequency: 345 MHz
• Non-encrypted sensor compatible with GC2, GC2e, GC3, GC3e, and Edge
• Includes (2) Lithium AA Batteries

The 2GIG Outdoor Wireless Contact Sensor expands the reach of security systems to outdoor areas, providing timely notification when outdoor gates or doors are opened. Able to handle harsh temperature conditions, this sensor is ideal for wide gaps when a typical contact sensor is insufficient. The 2GIG Outdoor Wireless Contact Sensor will ship with a 2-year limited warranty.

Specifications

• Ordering Part Number - 2GIG-DW30-345
• Wireless Signal Range - 350 ft (106.7"), open air with Wireless Control Panel
• Transmitter Frequency - 345 MHz
• Compatibility - 2GIG
• Supervisory Interval - 70 minutes
• Sensor Dimensions (L x W x H) - 4.6 x 2.1 x 1.5 inch
• Magnet Dimensions (L x W x H) - 4.1 x 1.0 x 1.1 inch
• Magnet Type - Rare Earth
• Magnet Gap - Up to 2 in
• Material - Paintable ABS
• External Input - Accepts N/C dry contact devices
• Operating Temperature - -40° to 150°F
• Operating Rel. Humidity - 0 to 100%, non-condensing
• IP Rating - Tested to IP56
• Projected Battery Life - 5 years
• Warranty - 2 years

2GIG-DW30-345 Datasheet
