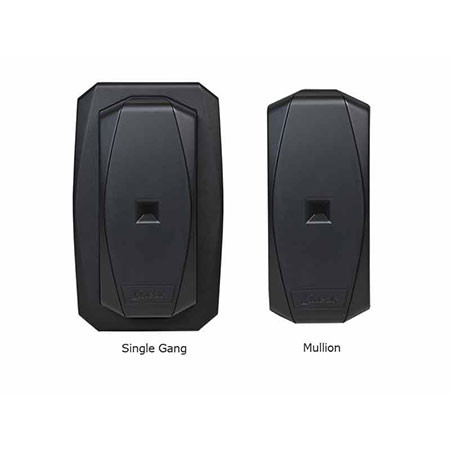

2-N-1PROXHAF Linear 2-N-1 Dual-Mount Proximity Reader

Features:

• Designed to fulfill two different mounting requirements without needing any additional hardware
• Can be installed as either a mullion-mount reader or, when paired with the provided adapter plate, turns the reader into a single-gang electrical box style reader
• Low profile for both mullion and single-gang installations
• Ready to install right out of the box for either configuration

Specifications

• Mfg Ordering Part # - 620-100451
• Reader Type - Proximity; 26- to 37-bit Wiegand
• Frequency - 125 kHz
• Mounting - Mullion or Single Gang
• Dimensions (H x W x D) - Single-Gang: 4.77" x 2.96" x 1.33" (121.1 x 75.1 x 33.7 mm), Mullion: 3.92" x 1.74" x 0.98" (99.5 x 44.2 x 24.9 mm)
• Weight -3 oz. (85g)
• IP Code - IP67
• Voltage - +5 to +16 VDC
• Current Draw - 30 mA typical, 75 mA peak @ 12VDC
• Read Range - Up to 6 inches (152 mm)
• Cabling - 24 AWG minimum, multi-conductor stranded with an overall foil shield 500’
• Interface - Wiegand ABA Track II
• Operating Temperature - -40° F to 149° F, (-40° C to +65° C)
• Color - Black
• Audio Tone - Sounder included
• Indoor & Outdoor Installation - Electronics sealed in weather and tamper-resistant epoxy potting
• Warranty - Limited lifetime warranty
• LED - Four-state indicator (red, green, amber, off)
• Certification - ETL listed to UL294, FCC, ICC, CE, C-Tick
• Designed for these credentials - HID 125 kHz Proximity protocols, AWID 125 kHz Proximity protocols, Farpointe Data Pyramid Series Proximity Cards and Tags

2-N-1ProxHAF Specifications PDF
