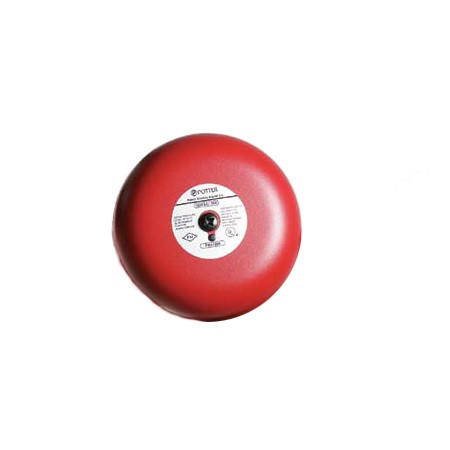

1806024 Potter PBA-246 6 Inch Alarm Bell 24V AV

• Model Number: PBA-246
• Item Number: 1806024
• Size - 6 Inches
• Voltage - 120VAC
• Max. Current - .17A
• Typical dB at 10 ft. - 91
• Minimum dB at 10 ft. - 78

These vibrating type bells are designed for use as fire, burglar or general signaling devices. They have low power consumption and high decibel ratings. The unit mounts on a standard 4" (101mm) square electrical box for indoor use

• UL, ULC, and FM Approved
• Sizes Available - 6" (150mm), 8" (200mm) and 10" (250mm)
• Voltage - 24VAC
• Service Use:
  • Fire Alarm
  • General Signaling
  • Burglar Alarm
• Environment:
• Indoor or outdoor use
• -40° to 150°F (-40° to 66°C)
• Termination - 4 No. 18 AWG stranded wires
• Finish - Red powder coating

  1806024 Datasheet
