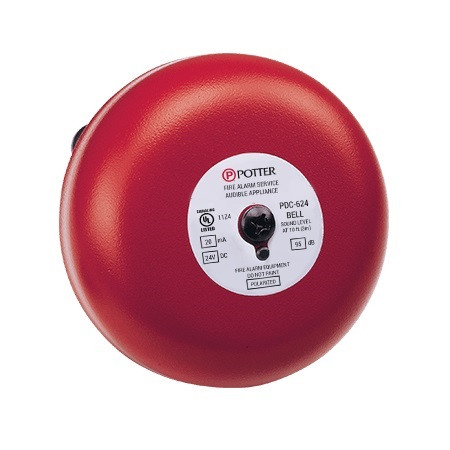

1750503 Potter PDC-824 DC Powered Bell

Features:

• Model Number - PDC-824
• Item Number - 1750503
• Listed for indoor and outdoor use
• Outdoor use requires BBK-1 or HC-BB weatherproof back box
• Indoor use mounts directly to standard 4” box
• Low current draw
• High dB output
• AC and DC models
• DC models are motor driven, polarized, and have built in transient protection for supervised alarm circuits
• Available in 6”, 8” and 10” sizes

TThese vibrating type bells are designed for use as fire or general signaling devices. They have low power consumption and high decibel ratings. The unit mounts on a standard 4” (101mm) square electrical box for indoor use or on a model BBK-1 or HC-BB weatherproof backbox for outdoor applications.

Specifications

• Size inches (mm) - 8 (200)
• Voltage - 24VDC
• Model Number - PDC-8-24
• Stock Number - 1750503
• Current (Max.) - 20mA
• Typical dB at 10 ft. (3m) (2) - 83
• Minimum dB at 10 ft. (3m) (1) - 79
• Dimensions - 6” (150mm), 8” (200mm) and 10” (250mm)
• Enclosure
  • Cover: Steel
  • Finish: Red Powder Coat
  • Base: non-corrosive composite material
  • All parts have corrosion resistant finishes
  • Model BBK-1 or HC-BB weatherproof backbox (optional)
• Voltages Available
  • 24VAC
  • 120VAC
  • 12VDC (10.2 to 15.6) Polarized
  • 24VDC (20.4 to 31.2) Polarized
• Environmental Limitations - Indoor or outdoor use, -40° to 150°F (-40° to 66°C) (Outdoor use requires weatherproof backbox.)
• Termination - AC Bells - 4 No. 18 AWG stranded wires, DC Bells - 18 AWG stranded wire
• Service Use - NFPA 13, 72, local AHJ
