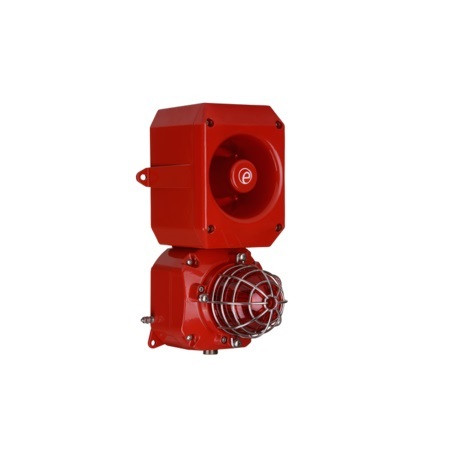

1430575 Potter E2 D2xC2LD2 Haz Loc Alarm Horn & LED Beacon 24VDC - Red Enclosure - Red Lens

Features:

• Model Number - D2xC2LD2DC024CN1A1R
• Item Number - 1430575
• CAN/ULC-S525 Fire Alarm
• UL464/UL1638 General signaling
• Auto-synchronised – audible and visual
• 64 alarm tones, 4 remotely selectable alarm stages/channels
• Five flash rates: 1Hz, 1.3Hz, 2Hz, double and triple flash
• Two steady mode intensities for status indication
• Marine grade aluminium enclosure Type 4/4X/3R/13, IP66

The D2xC2LD2 utilises an array of high power Cree LED’s, orientated to optimise visibility in any direction. The beacon can be configured as a steady light for status indicator use with a light output of up to 87 candela. Alternatively one of the five flashing modes, with a effective output of up to 180 candela, may be used for warning applications. The high output alarm horn features 64 tones and DC voltage versions feature remotely selectable stages enabling multiple warnings to be signalled from one device. The 24Vdc version is approved for private mode fire alarm use.

Specifications

Alarm Horn Sounder

• Maximum output - 116dB(A) @ 1 metre [107dB(A) @ 10ft/3m]
• Nominal output - 112dB(A) @ 1m +/- 3dB – Tone 2 [103dB(A) @ 10ft/3m]
• No. of tones - 64 (UKOOA / PFEER compliant)
• No. of stages - 4
• Volume control - Adjustable -12dB(A) [Tone 2]
• Effective range - 125m/410ft @ 1KHz
• Synchronization - All alarm tones synchronize

LED Beacon /Light

• Source - Array of 4 x High Power Cree LED’s
• Eff. Intensity cd - 73.4 cd UL1638 Private mode fire
• Eff. Intensity cd - 180 cd UL1638 General signaling
• Peak Intensity cd - 300,000 cd
• Eff. Intensity cd - 87 cd High power steady
• Lens colours - Amber, Blue, Clear, Green, Magenta, Red & Yellow
• Synchronization - Synchronized 1Hz, 1.5Hz and 2Hz flash rates

General

• Voltages DC - 24V dc, 48V dc
• In rush - 2.1A for <10ms
• Ingress protection - IP rating per EN60529:IP66, Type rating per UL50E/NEMA250:4/4X/3R/13
• Enclosure material - Marine grade LM6 aluminum alloy
• Enclosure colour - Red (RAL3000), Grey (RAL7038)
• Lens material - Borosilicate glass dome with PC prismatic lens cover
• Guard - Stainless Steel dome guard as standard
• Cable entries - 2 × 1/2"NPT
• Stopping plug - Stopping plug included, Optional brass, nickel plated or stainless steel
• Ground/Earth stud - M5
• Terminals - 0.5 – 2.5mm² (20-14 AWG)
• Line monitoring - Blocking diode included, EOL can be factory fitted
• Operating temp - -40 to +50°C [-40° to +122°F]
• Storage temp - -40 to +70°C [-40° to +158°F]
• Relative humidity - 95%
• Weight - DC: 4.00kg/8.82Ibs
