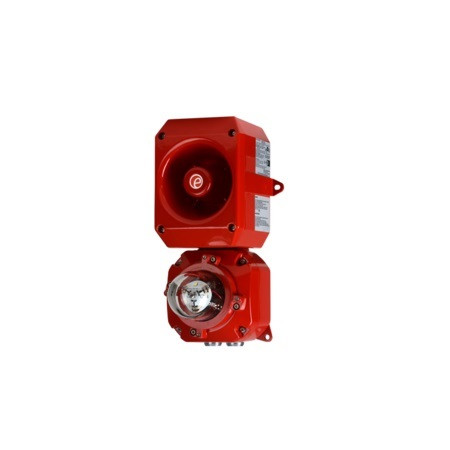

1430573-1 Potter E2 D2xC2LD3 Horn & LED Synchronized UL464 & UL1971 - Red Enclosure - Clear Lens

Features:

• Model Number - D2XC2LD3DC024BN0H1R/C
• Item Number - 1430573-1
• Public mode fire use UL1971 & CAN/ULC-S526
• Private mode fire use UL1638
• Auto-synchronized for over 2 hours per UL1971
• 79.3 eff. candela – UL1971 Public mode fire
• 107.5 eff. candela – UL1638 Private mode fire
• 252.0 eff. candela – UL1638 General signaling
• 107dB(A) @ 10ft/3m max. sound output
• 64 alarm tones, 4 remotely selectable alarm stages/channels

The D2xC2LD3 utilises an array of super high power Cree LED’s, orientated to optimise visibility in any direction. The 20ms pulse creates an intense flash comparative to a Xenon strobe. Multiple D2xC2LD3 units will auto-synchronize when powered from the same power source removing the need for any additional sync modules on the circuit. The horn & LED light can be powered from the same source, simplifying installation and reducing cabling costs. UL1971 effective candela rating of 79.3cd. The unit is UL/cUL approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 hazardous areas.

Specifications

Alarm Horn Sounder

• Maximum output - 116dB(A) @ 1 metre [107dB(A) @ 10ft/3m]
• Nominal output - 112dB(A) @ 1m +/- 3dB – Tone 2 [103dB(A) @ 10ft/3m]
• No. of tones - 64 (UKOOA / PFEER compliant)
• No. of stages - 4
• Volume control - Adjustable -12dB(A) [Tone 2]
• Effective range - 125m/410ft @ 1KHz
• Synchronization - All alarm tones synchronize

LED Beacon /Light

• Source - Array of 3 x High Power Cree LED’s
• Pulse width - 20ms – high intensity ‘strobe’ flash
• Modes
  • 1Hz flash (60 fpm)
  • 1.3Hz flash (80 fpm)
  • 1.5Hz flash (90 fpm)
  • 2Hz flash (120 fpm
• Eff. Intensity cd - 79.3 cd UL1971 Public mode fire
• Eff. Intensity cd - 107.5 cd UL1638 Private mode fire
• Eff. Intensity cd - 252.0 cd UL1638 General signaling
• LED life - >60,000 hours
• Synchronization - Flash rates synchronize for a minimum of 2 hours per UL1971

General

• Voltage - 24V dc [16-33V dc]
• In rush - 2.3A for <10ms
• Ingress protection - IP rating per EN60529:IP66, Type rating per UL50E/NEMA250:4/4X/3R/13
• Enclosure material - Marine grade LM6 aluminum alloy
• Enclosure colour - Red (RAL3000)
• Lens material - Borosilicate glass
• Cable entries - 2 × 1/2"NPT
• Stopping plugs - Nickel Plated Brass plugs included
• Ground/Earth stud - M5
• Terminals - 0.5 – 2.5mm² (20-14 AWG)
• Line monitoring - Blocking diode included, EOL can be factory fitted

1430573-1 Datasheet
