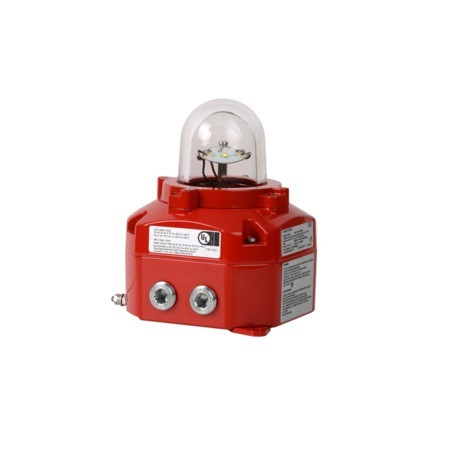

1430570 Potter E2 D2xB1LD3 UL1971 Haz Loc Synchronized LED Light - Red Enclosure - Clear Lens

Features:

• Model Number - D2xB1LD3DC024MN0H1C
• Item Number - 1430570
• Public mode fire use UL1971 & CAN/ULC-S526
• Private mode fire use UL1638
• Synchronized for over 2 hours per UL1971
• 82.1 eff. candela – UL1971 Public mode fire
• 112.5 eff. candela – UL1638 Private mode fire
• 252.0 eff. candela – UL1638 General signaling
• Ultra low operating current of 153mA
• In rush limiting circuit: 1.18A

The D2x1BLD3 utilizes an array of super high power Cree LED’s, orientated to optimize visibility in any direction. The 20ms pulse creates an intense flash comparative to a Xenon strobe. Multiple D2xB1LD3 units will auto-synchronize when powered from the same power source removing the need for any additional sync modules on the circuit. The D2xB1LD3 contains a supervisory diode and duplicated pluggable terminals that not only simplify installation but also enable a 4 wire connection. The unit is UL, cUL and ULC approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 hazardous area applications.

Specifications

• Source - Array of 3 x High Power CreeLED’s
• Pulse width - 20ms – high intensity ‘strobe’ flash
• Modes
  • 1Hz flash (60 fpm)
  • 1.3Hz flash (80 fpm)
  • 1.5Hz flash (90 fpm)
  • 2Hz flash (120 fpm
• Eff. Intensity cd - 82.1 cd UL1971 Public mode fire
• Eff. Intensity cd - 112.5 cd UL1638 Private mode fire
• Eff. Intensity cd - 252.0 cd UL1638A General signaling
• LED life - >60,000 hours
• Synchronization - Flash rates synchronize for a minimum of 2 hours per UL1971
• Voltage - 24V dc (16-33V dc)
• In-rush - 1.18A for 2ms
• Ingress protection - IP rating per EN60529:IP66, Type rating per UL50E/NEMA250:4/4X/3R/13
• Enclosure material - Marine grade LM6 aluminum alloy
• Enclosure colour - Red (RAL3000)
• Lens material - Borosilicate glass
• Cable entries - 2 x M20x1.5, 2 × 1/2"NPT, 1 × 3/4"NPT
• Stopping plugs - Nickel Plated Brass plugs included
• Ground/Earth stud - M5
• Terminals - 0.5 – 2.5mm² (20-14 AWG)
• Line monitoring - Blocking diode included, EOL can be factory fitted
• Operating temp - -40 to +50°C [-40° to +122°F]
• Storage temp - -40 to +70°C [-40° to +158°F]
• Relative humidity - 95%
• Weight - 1.5kg/3.31Ibs
