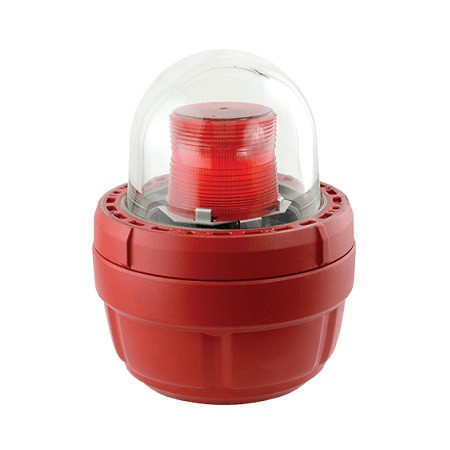

1430517 Potter FSEX-24PMR-MOD Explosion-Proof Strobe Light Haz Areas (Div1) 24VDC Red with Red lens

Features:

• Model Number: - FSEX-24PMR-MOD
• Item Number: - 1430517
• Approved for mounting in any matter including dome up
• Synchronize with SSM module
• Four lens covers: Amber, blue, clear and red
• 10,000 hour strobe tube
• 3/4” NPT pendant, ceiling and wall mount options available
• Dome guard optional
• Type 4X, IP66, IPK69 enclosure
• Marine rated

The Federal Signal Model FSeX explosion-proof strobe light produces 80 high-intensity flashes per minute. This warning light operates on 24VDC and is unique to the market because it covers an entire range of possible mounting configurations – including dome up. This light is designed for use in alarm notification systems and is compatible with fire alarm and suppression supervised control panels and power boosters.

Specifications

• Operating Voltage - 24 VDC polarized
• Operating Current - 1.90 amps (3.0 amps in-rush)
• Flash Rate per Minute - 80
• Candela peak* - 2,000,000
• Lamp Life - 10,000 hours
• Light Source - Strobe tube
• Material - Cast Aluminum
• Operating Temperature Range - -67°F to 150°F
• Weight
  • Without mounting - 13.9 lbs
  • Ceiling mount - 4.5 lbs
  • Pendant mount - 2.0 lbs
  • Wall mount - 5.9 lbs

1430517 Datasheet
