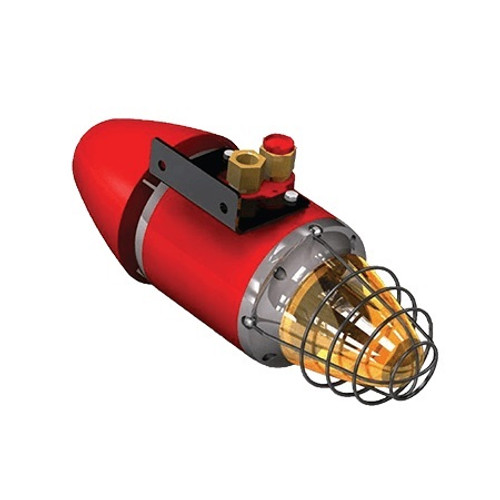

1430511 Potter YL60-B-D50-R-UL Explosion PRF Strobe/HRN Red Lens 24 VDC

Features:

• Model Number - YL60-B-D50-R-UL
• Item Number - 1430511
• Lamp: Flashing beacon – XENON (5 J)
• Horn: Omnidirectional/max. 110 dB(A)
• Type of protection: Ex d
• class: iP66 (iEc 60529/ NEMA 4X)
• Robust aluminium enclosure (powder-coated)
• Stainless steel protection cage and mounting bracket included
• 8 light- intensifying Fresnel lens colours available to order
• 32 standardised preconfigured signal sounds (PFEER/UKOOA compatible)

Product series YL60 is designed to provide both an audible and visual alarm which can be used to alert, warn or draw attention to machine malfunction/start up or any number of safety related issues in hazardous areas. The audible and visual signals can be operated independently or as a combination unit.

Specifications

Explosion Protection

• iEcEx gas explosion protection - Ex d iiB+H2 T4 gb
• iEcEx dust explosion protection - Ex tb iiic T135 °c Db
• ATEX gas explosion protection - E ii 2 g Ex d iiB+H2 T4 gb
• ATEX dust explosion protection - E ii 2 D Ex tb iiic T135 °c Db
• Marking cULus
  • class i, Div. 1,2, groups B,c,D
  • class ii, groups E,F,g
  • class iii
  • class i, Zone 1 AEx/ Ex d iiB + H2

Acoustic Data

• Sound pressure level - max. 110 dB(A) @ 1 m
• Tone selection - via DiL switch
• Number of stages - 2

Ambient conditions

• Ambient temperature - -20 °c ... +60 °c (T4)

Lighting Data

• Lamp - Xenon flash tubes
• Flash engery - 5J
• Flash rate - 1 Hz

Mechanical Data

• Degree of protection iP (iEc 60529) - iP66
• Enclosure material - Aluminium, powder-coated, Seawater-resistant
• Enclosure colour - Red (RAL 3001)
• Trumpet material - ABS, flame retardant
• Material glas dome - Polycarbonate
• Material wire guard - Stainless steel
• connection terminals solid max - 2.5 mm²
• Connection terminals finely-stranded max - 2.5 mm²

Mounting / installation

• Material mounting parts - Sheet steel, powder-coated
• connection type - Screw terminal

components

• Drilled holes - 2 x M20
• cable entries - can be ordered as accessories
• Stopping plug
  • 1 x 1/ 2" NPT
  • 2 x adapters M20x1/2"NPT
  • 1 x dust cap
• Stopping plug material - Brass

1430511 Datasheet
