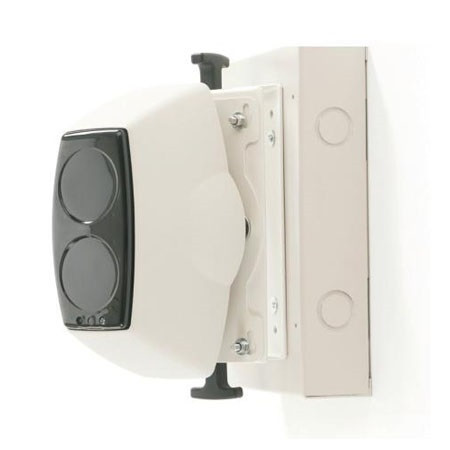

1430110 Potter 100RU Beam Detector 330FT

• Model Number: 100RU
• Item Number: 1430110
• Easy set up and alignment
• Single compact housing
• Calibrated obscuration test filter included
• 3 selectable alarm thresholds: 25%, 35% or 50%
• Microprocessor controlled
• Alarm latching or auto reset
• Automatic gain control
• 12 VDC or 24 VDC operation

The system comprises of a single unit incorporating an infra-red transmitter and receiver.The signal generated in the transmitter element and reflected by the prism back to the receiver element is analyzed for the presence of smoke.The internal micrfoprocessor determines an alarm condition when a predetermined level is reached.
The system is designed to be mounted so the beam will project between 19" (0.5 m) and 24" (0.6m) below and parallel to the ceiling. Lateral detection may be up to 30ft. (9.144m) on either side of the beam, providing a maximum total coverage area of up to 19,800 square feet (60ft. x 330ft. or 18.29m x 100m).

Specifications

• Housing - Flame Retardant ABS
• IP Rating - IP50
• Finish - Grey/Black
• Weight - 1.5 lbs (0.68 kg)
• Dimensions
  • 8.25” H x 4.5” D x 4.75”W
  • (210mm H x 114.3mm D x 120mmW)
• Primary Input Power - 10.2 to 30VDC
• Standby Current - 4mA @ 24VDC
• Alarm Current - 15 mA @ 24VDC
• Relay Contacts - 1A at 30 VDC Resistive
• Reset Time - 5 Seconds maximum
• Start Up Time - 10 Seconds
• OpticalWavelength - 880nm.
• Sensitivity - 25%, 35%, 50%
• Temperature Rating
  • -4°F to 131°F (-20°C to +55°C) For UL Listed Installations
  • 32°F to 100°F (0°C to 38°C)
• Relative Humidity - 10% to 93% RH non-condensing
• Range
  • 50RU 16.5-160 ft. (5m-50m)
  • 100RU 160-330 ft. (50m-100m)
