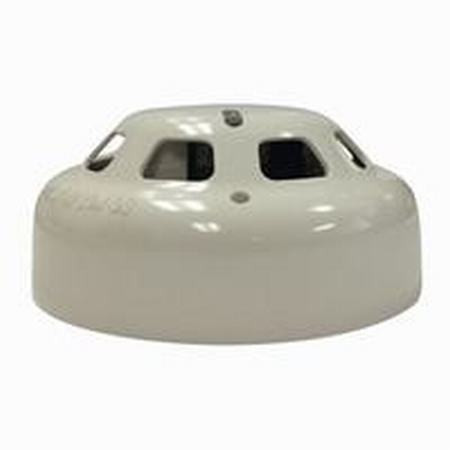

1430036 Potter CPS-24 Conventional Photoelectric Smoke Detector

• Model Number: CPS-24
• Item Number: 1430036
• 360^º view of detector status LED
• Low profile, 2" high (with base)
• 2 or 4 wire base compatibility, relay bases available
• Highly stable operation, RF/Transient protection
• Low standby current, 59µA at 24VDC
• One built-in power/sensitivity supervision/alarm LED

The CPS-24 is a reliable, high quality Photoelectric Smoke Detector. It can be used in all open areas where Photoelectric Smoke Detectorsare required, including in-duct applications. The computer-designedsmoke chamber makes the CPS-24 well suited for detectingsmoldering fires as well as fast-flaming fires.

Specifications

• Light Source - GaAIAs Infrared Emitting Diode
• Rated Voltage - 12 or 24 VDC
• Working Voltage - 8 - 35.0 VDC
• Maximum Voltage - 42 VDC
• Supervisory Current - 59µA @ 24 VDC
• Surge Current - 160µA max. @ 24VDC
• Alarm Current - 150mA max. @24 VDC
• Air Velocity Range - 0-4000 fpm
• Ambient Temperature - 32°F to 120°F (0°C to 49°C)
• Sensitivity Test Feature - Automatic Sensitivity window verification test
• Mounting
  • Refer to Potter SB Series Smoke Detector Base series, bulletin no.
  • 8840008.
