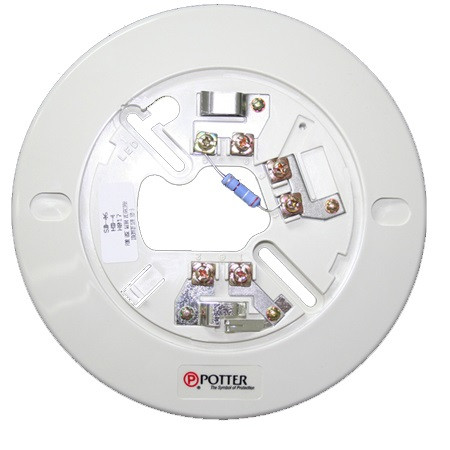

1430014 Potter SB-46 Smoke Detector Base 46mA 24VDC

• Model Number: SB-46
• Item Number: 1430014

The SB Series is a 6” polarized base with annunciator output featuring a current limiting resistor, and a blocking diode to enhance annunciator function. The SB Series Smoke Detector base is designed specifically for use with the Potter Smoke Detector Models IS-24, PS-24 and PS-24H.These detectors will not sense fires which start where smoke does not reach the detector.

Compatibility - All Potter release panels; Not for use with PFC3000, 5000, 9000 Series panels; Check other panel manufacturer’s compatibility listings.

• UL and ULC Listed
• Smoke Base - 46mA draw @ 24vdc
• Electrical:
• 24VDC - Polarized
• Suitable for use with Potter PFC Series Controls
• Mounting - 3 1/4” or 4” outlet box
• Annunciator Output - 15mA at 24VDC
• Alarm Current - 46mA @ 24 VDC
• Service Use - National Fire Alarm Code NFPA-72

1430014 Datasheet
