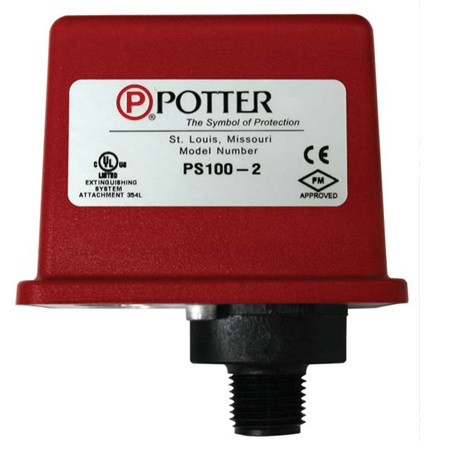

1341005 Potter PS100-2 Pressure Switch with Two SPDT Contacts

• Model Number: PS100-2
• Item Number: 1341005

The PS40-TM is the industry’s FIRST AND ONLY completely pre-assembled low pressure test module for dry pipe and pre-action systems. This Product eliminates any possibility of accidentally tripping the dry pipe valve during testing. Closing the BVL bleeder valve isolates the PS40 and pressure gauge from the air source while exhausting the supervisory air pressure between the bleeder valve and the PS40. This can save hours of time waiting for pressure to bleed down then build back up, as is the case in the old conventional testing method.

• UL, cUL, and CSFM Listed, FM and LPC Approved, NYMEA Accepted, CE Marked Pending
• Dimensions - 3.78" (9.6cm)W x 3.20" (8.1cm)D x 4.22" (10.7cm)H
• Conduit Entrance:
• Two knockouts provided for 1/2" conduit.
• Individual switch compartments and ground screw suitable for dissimilar voltages.
• Enclosure:
• Cover- Die-cast with textured red powdercoat fi nish, single cover screw and rain lip.
• Base- Die-cast
• Pressure Connection - Nylon 1/2" NPT male
• Factory Adjustment - Operates on decrease at 90 PSI (6,2 BAR)
• Pressure Range - 25-175 PSI (1,7 - 12,1 BAR)
• Differential:
• Typical 2 lbs. at 25 PSI (,14 at 1,7 BAR)
• 8 lbs at 175 PSI (,55 at 12,1 BAR)
• Maximum System Pressure - 300 PSI (20,68 BAR)
• Switch Contacts:
• Two SPDT (Form C)
• 10.1 Amps at 125/250VAC, 2.0 Amps at 30VDC
• Environmental Specifi cations:
• NEMA 4/IP55 Rated Enclosure - indoor or outdoor when
• used with NEMA-4 conduit fi ttings.
• Temperature range: -40°F to 140°F (-40°C to 60°C)

1341005 Datasheet
