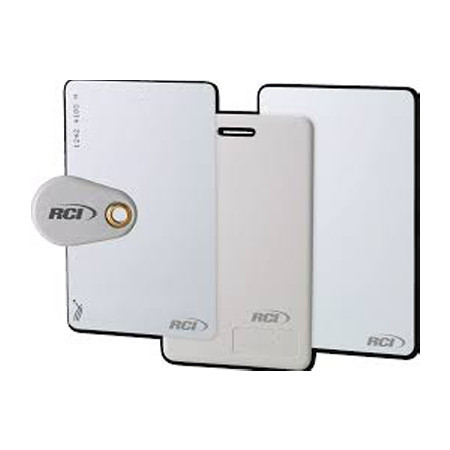

1314R-10 Dormakaba RCI Proximity Card (Thick Printable) - 10 Pack - Standard Dormakaba RCI Protocol

Features:

• Matching internal and external sequential coding standard. Custom printing available.
• Tested with 12VDC @ 5395R reader.
• Contact RCI to learn how you can customize your cards and fobs.
• Please verify that the printer (or overlay) supports credential type/thickness.

Specifications

• Technology - Proximity
• Frequency - 125kHz
• Operation - Passive (no battery)
• Format - 26-bit
• Material - PVC
• Color - Glossy white
• Marking1 - Date code and ID
• Read Range2 - Up to 6-1/2" (165mm)
• Warranty - Limited lifetime warranty
• Dimensions - 2-1/16"W x 3-3/8"H x 1/16"D (53mm x 86mm x 1.17mm)
• Weight - 0.3oz (9g)
• Operating Temperature - -35°F to 122°F (-37°C to +50°C)
• Humidity - 0-95% non-condensing
• Protocols - Item code suffix
  • R – Standard RCI proximity protocol
  • R-H – Certain HID proximity protocols
  • R-A – Certain AWID proximity protocols
• Packaging - Sold in packs of 10, 25 and 50
• Options3 - Custom facility codes, formats, printing and slot punching available
• Imaging4 - Supports dye sublimation imaging
• Slot Punch - Vertical & horizontal indicators

1314R-10 Specifications PDF

Dormakaba RCI 1314R 1326R-1346R-1386R Proximity Cards and Keyfob Ordering Guide PDF
