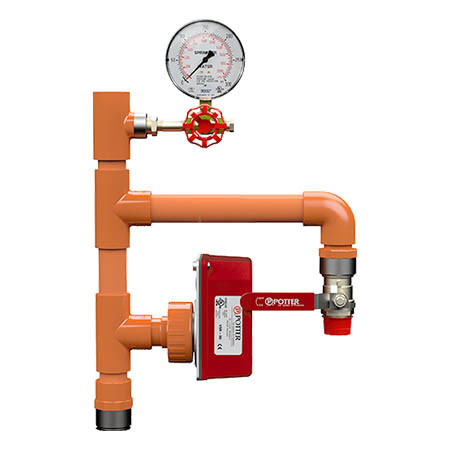

1119077 Potter RD13-1-1/4" 1.25 Inch Sprinkler Riser

Features:

• Model Number: RD13-1-1/4"
• Item Number: 1119077
• Pre-assembled and pressure tested
• 1/4" nominal pipe size
• Female adapter ships loose so riser can be installed in a confined space
• Fits in standard 2x4 construction walls
• Includes 3 way valve to allow for calibration of pressure gauge

The RD13 Riser is constructed from Listed CPVC products suitable for fire sprinkler services subject to the limitations and installation requirements of Flameguard by Spears. The RD13 Riser incorporates a UL Listed VSRSFG flow switch, gauge, drain valve. The VSRSFG flow switch is equipped with union connection to facilitate the installation and removal of the switch in confined spaces.

• Service Pressure - 175 PSI (12,07 BAR) UL
• Flow Sensitivity Range for Signal - 410 GPM (1538 LPM) UL
• Maximum Surge - 18 FPS (5.5 MPS)
• Conduit Entrances: - Two knockouts provided for 1/2" conduit.
• Contact Ratings:
  • Two sets of SPDT (Form C)
  • 10.0 Amps at 125/250V AC
  • 2.0 Amps at 30V DC Resistive
  • 10 m Amps min. at 24V DC
• Environmental Specifications:
• Temperature range: 40°F 120°F, (4.5°C 49°C) UL
• Service Use:
• Automatic Sprinkler NFPA13
• One or two family dwelling NFPA13D
• Residential occupancy up to four stories NFPA13R
• National Fire Alarm Code NFPA72
• 1.25 Inch Model Dimensions: 24 x 13 x 2
• UL, CUL, and CSFM Listed

1119077 Datasheet
