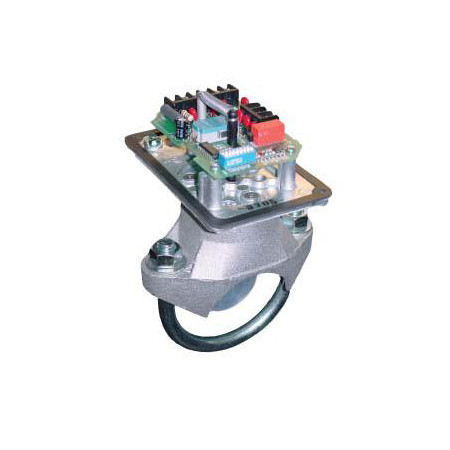

1116035 Potter VSR-FE2-3.5 Inch Flow Switch W/ Electronic Retard

• Model Number: VSR-FE2-3.5
• Item Number: 1116035

Specifications

• Service Pressure - Up to 450 PSI (31 BAR)
• Minimum Flow Rate for Alarm - 10 GPM (38 LPM)
• Maximum Surge - 18 FPS (5,5 m/s)
• Power Requirements
  • STANDBY - 10 mA at 120VAC or 1.5 mA at 24VAC/DC
  • ALARM - 40 mA at 120VAC or 35 mA at 24VAC/DC
• Contact Ratings - DPDT (Form C) 2 Amps at 30VDC or 125VAC resistive
• Conduit Entrances - Two knockouts provided for 1/2" conduit
• Environmental Specifi cations
  • Suitable for indoor or outdoor use with factory installed gasket and die-cast housing.
  • NEMA 4 Rated Enclosure - use with appropriate conduit fitting
  • Temperature range - 40°F / 120°F, 4,5°C/49°C
  • Non-corrosive sleeve factory installed in saddle.
• Sizes Available - Schedules 10 thru 40, sizes 2" thru 8" (50mm thru 200mm)
• Service Use
  • Automatic Sprinkler NFPA-13
  • One or two family dwelling NFPA-13D
  • Residential occupancy up to four stories NFPA-13R
  • National Fire Alarm Code NFPA-72
• Optional - Cover Tamper Switch Kit, Stock No. 0090018
