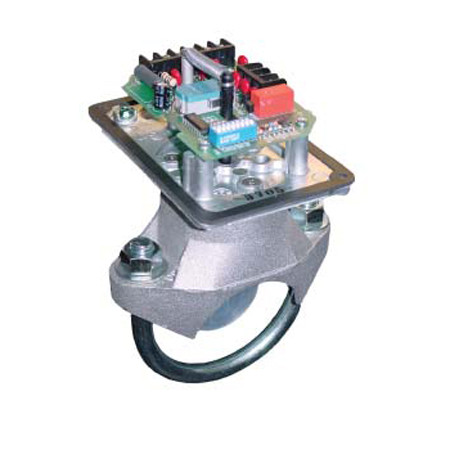

1116003 Potter VSR-FE-2 3" Vane Type Waterflow Swith w/Electronic Retard

• Model Number: VSR-FE2-3
• Item Number: 1116003

Model Number: 1116003

Specifications:

• UL and ULC Listed, FM Approved
• Minimum Flow for Alarm: 10 GPM (38 LPM)
• Maximum Surge: 18 FPS (5,5 m/s)
• Power Requirements: STANDBY: 10 mA at 120VAC or 1.5 mA at 24VAC/DC. ALARM: 40 mA at 120VAC or 35 mA at 24VAC/DC
• Contact Ratings: DPDT (Form C) 2 Amps at 30VDC or 125VAC resistive
• Conduit Entrances: Two knockouts provided for 1/2" conduit
• Environmental Specifi cations:
• Suitable for indoor or outdoor use with factory installed gasket and die-cast housing.
• NEMA 4 Rated Enclosure - use with appropriate conduit fi tting
• Temperature range: 40°F / 120°F, 4,5°C/49°C
• Non-corrosive sleeve factory installed in saddle.
• Sizes Available: Schedules 10 thru 40, sizes 2" thru 8" (50mm thru 200mm)
• Service Use:
• Automatic Sprinkler NFPA-13
• One or two family dwelling NFPA-13D
• Residential occupancy up to four stories NFPA-13R
• National Fire Alarm Code NFPA-72
• Optional: Cover Tamper Switch Kit, Stock No. 0090018
