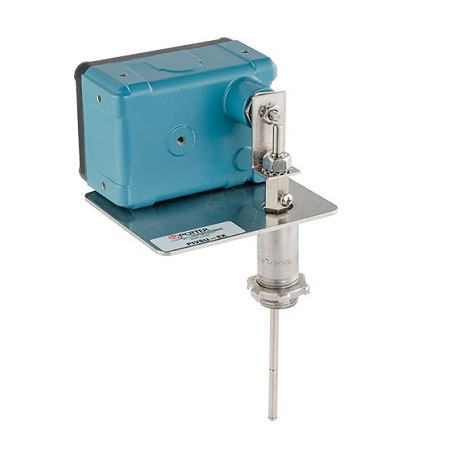

1010122 Potter PIVS-U-EX Valve Supervisory Device-Explosion

• Model Number: PIVS-U-EX
• Item Number: 1010122
• NEMA 1, 7, 9
• For use in hazardous locations Class I, Div. 1 & 2, Groups C, D, Class II, Div. 1 & 2, Groups E, F, G
• Explosion proof switch enclosure UL Listed, file #E14274, CSA Certified, File #LR57324, ATEX/IEC EX Approved, File #KEMA 04ATEX2312X
• Adjustable length trip rod
• Ample wiring space
• RoHS Compliant

The PIVSU-EX is designed to supervise the position of a Post Indicator or Butterfly valve in hazardous locations. The device mounts in a 1/2” NPT threaded nipple to the valve body. When properly mounted, the indicator of the Post Indicator valve or the operating mechanism of the Butterfly Valve will be pushing against the return spring of the PIVSU-EX so that as the valve is operated, the spring in the PIVSU-EX pulls the trip rod over and activates the switch.

Specifications

• Weight - 2.14 lbs (0,97 kg)
• Materials - Switch Enclosure - Aluminum, Plate/Nipple/Hardware - Stainless Steel
• Contact Ratings One set of SPDT 15 Amps at 125VAC, .5 Amps at 125VDC, Terminals accept up to 14AWG wire
• Environmental Limitations - -40°F to 140°F (-40°C to 60°C), Class I, Div. 1 & 2, Groups C, D, Class II, Div. 1 & 2, Groups E, F, G, NEMA 1, 7, 9
• Conduit Entrances - One 1/2” -14 NPT threaded entrance
• Mounting - 1/2” NPT
• Service Use - NFPA 13, 13D, 13R, 72
