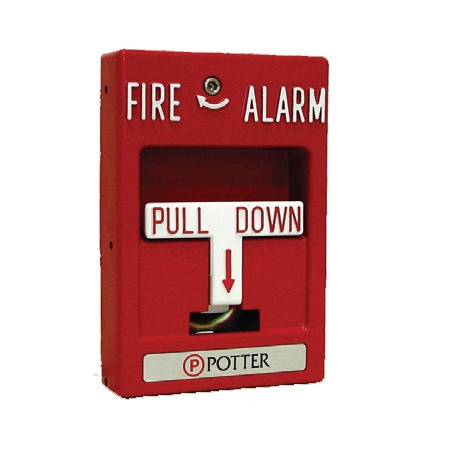

1000401 Potter RMS-1T-WP Weather Proof Single Action Pull Station

• Model Number: RMS-1T-WP
• Item Number: 1000401

The Potter single action series of pull stations operate by pulling the white operating handle straight down and the handle will lock into place. The Potter Pull Station Series offers a complete line of die-cast pull stations for a variety of applications focusing mainly on fire alarm systems. The pull stations are available in single or dual action models. All of the pull stations have a 10-amp snap action switch and a dedicated terminal block for the ease of wire connections. All of the metal is completely coated to inhibit corrosion and provide for a uniform and quality finish.

• Switch Rating:
  • 1 Amp @ 30 VDC
  • 1 Amp @ 125 VAC
• Pull Station Dimensions - 4-3/4" H x 3-1/4" W x 7/8" D
• Weather Proof
• UL and cUL Listed, FM Approved, CSFM Listed, MEA Approved, ADA Compliant
• Single Action
• Terminal connectors
• 10 Amp Snap Action Switch
• Gold plated SPST contacts
• Mounts on standard single gangbox
• Surface backboxes available
• High-gloss red enamel finish
• Glass breakrod
• Made in the U.S.A.

1000401 Datasheet
