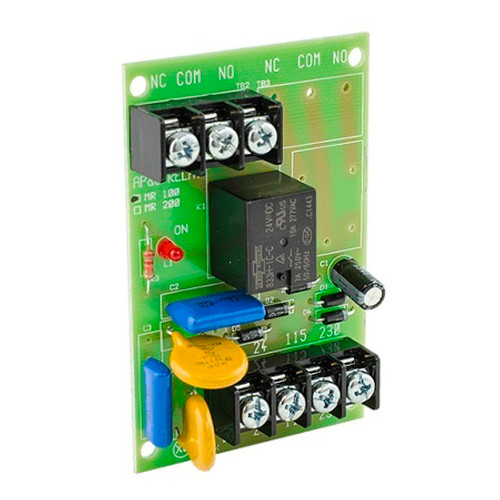

1000259-1 Potter MR-101/C/R Multi-Voltage Relays, Energized LED, 18mA, SPDT, Red Enclosure

Features:

• Model Number - MR-101/C/R
• Item Number - 1000259-1
• Relay may be energized from a voltage source of 18 to 35VDC/VAC, 115VAC or 230VAC
• Each relay position contains a red LED which illuminates when the coil is energized. This provides a time saving convenience when checking an installed system, no metering is required
• Single, dual, or triple relay modules may be "snapped apart" from standard 4 position master
• For continuous duty use
• Available in dust proof enclosures with LED viewing port
• Track mounting hardware to facilitate installation in standard cabinets
• UL recognized relays rated at 10,000,000 mechanical operations
• UL Listed as Control Unit Accessory

The MR Series Multi-voltage Control Relays offer SPDT or DPDT 10 Amp resistive contacts which may be operated by one of four input control voltages. A single relay may be energized from a voltage source of 24VDC, 24VAC, 115VAC, or 230VAC by wiring to appropriate input terminals.

Specifications

Power Requirements

• MR101 Position
  • 15mA @ 24VDC
  • 30mA @ 24VAC
  • 20mA @ 115VAC
  • 20mA @ 230VAC
• Enclosure - Backbox: 18 ga. CRS, plated with 1/2" Conduit Knockouts, Cover: ABS-94VO
• Contact Rating - 10A Res. @ 115VAC, 7A Res. @ 230VAC, 7A Res. @ 28VAC, N.O. 1/6 HP @ 115VAC, N.C. 1/8 HP @ 115VAC
• Ambient Temperature - 32°F to 120°F
• Approvals - MR-101/C, MR-104/C, MR-201/C, MR204/C, U.L. Listed File #S3403, City of New York MEA #73-92-E, CSFM #7300-1004:101
• Dimensions - 5.125" (130.2mm)H x 3.125" (79.0mm) W x 2.5" (63.5mm)

1000259-1 Datasheet
