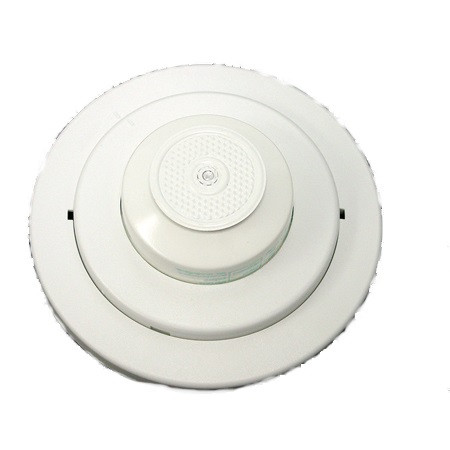

1000137 Potter CR-135-MP Moisture Proof Fixed/ROR Heat Detector

• Model Number: CR-135-MP
• Item Number: 1000137

The Thermoflex product group includes standard detectors as well as detectors for hazardous locations and moisture-proof applications. Each detector is available in single or multiple circuits with open and/or closed contact configurations. The prefix "CR” in the model number denotes rate-of-rise and fixed temperature operation. The prefix "CF” denotes fixed temperature only. The standard fixed temperature settings are 135°F and 200°F. Units set at 165°F and 285°F are also available.

(MP) Moisture Proof Series - The CR200W is a combination rate-of-rise and fixed temperature detector. The fixed temperature portion releases when the ceiling temperature reaches 135°F The spacing parameters for the rate-of-rise is 70’ (22 m).

• CR-135W-MP - Moisture Proof Fixed/Rate of Rise OR indoor
• Contact Ratings:
  • 3 Amps at 125 VAC
  • 1Amp at 28 VDC
  • 0.3 Amps at 125 VDC
  • 0.1 Amps at 250 VDC
• Dimensions - Diameter - 5.25” (13.4cm) Height - 2” (4.85cm)
• Weight - 0.41 lbs. (330 grams)
• UL and ULC Listed
