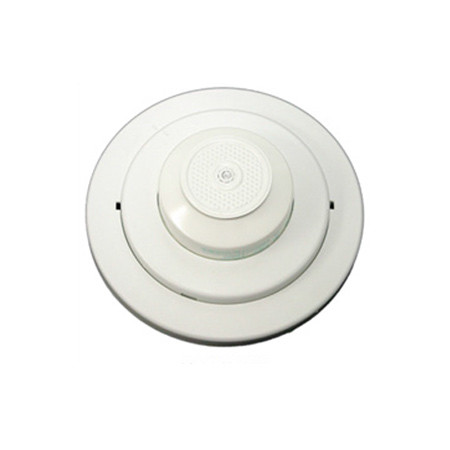

1000124 Potter CF-165CW 165F Heat Normally Closed Aluminum Finish

• Model Number: CF-165CW
• Item Number: 1000124
• Low profile design
• Dual action (rate of rise/fixed temperature) or fixed temperature only
• White plastic housing
• Up to 70' inter detector spacing
• Open or closed contact versions available
• Available in single or multiple circuit versions
• Product includes a 5 year warranty

The CF Series detectors are Fixed Temperature only. They will operate when the detector reaches the applicable temperature. Fixed Temperature detectors are non-restorable.

Specifications

• Dimensions - 5.25” x 2”
• Device Weight - 0.41 lbs (0.19 kg)
• Shipping Weight - 0.6 lbs (0.3 kg)
• Materials - Plastic
• Contact Ratings
  • 3 Amps at 125VAC
  • 1 Amp at 28VDC
  • 0.3 Amps at 125VDC
• Environmental Limitations
  • -20°F (-30°C) - 250°F (120°C)
  • Exclusive of Operating Temperature
• Mounting - 4” Standard Octagon Box

1000124 Datasheet
