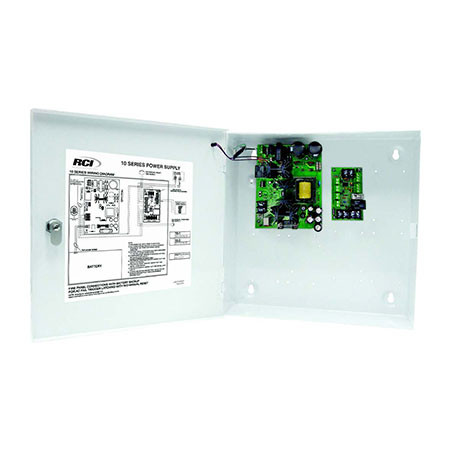

10-1-FPD Dormakaba RCI 1.5 Amp Power Supply w/ Fire Panel Disconnect - 12VDC/1.5 Amps or 24VDC/1 Amp

Features:

• Field Selectable Voltage 12/24VDC
• Exceptional brownout protection
• Surge protected input
• The 10-1 models have Class 2 fused DC output
• AC and DC visual indication
• Precise battery regulation for lead acid batteries
• Backup batteries provide DC power on AC failure
• Form C relay to indicate AC failure

RCI ’s filtered and regulated 10 Series DC Power Supplies are designed with safety and reliability in mind; especially when it comes to electromagnetic locks. They incorporate many life safety options required to meet various code requirements such as: fire panel interface, instant unlock upon power failure and remote override reset capabilities for authorized personnel. The Modular Distribution Board options make the 10 Series Power Supply the perfect solution when flexible power distribution is required. See Modular Distribution Boards descriptions for more information.

Specifications

• Model - 10-1-FPD
• Description - 1.5 Amp Power Supply with Fire Panel Disconnect

10-1-FPD Specifications PDF

Dormakaba RCI Power Supplies and Accessories Ordering Guide PDF
