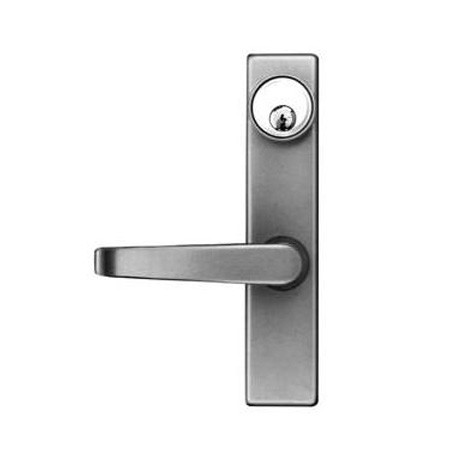

08N-EL x 40 Dormakaba RCI Narrow Electrified Lever with Cutout x 40
- Brand
- Dormakaba
- SKU:
- 08N-EL x 40
Features:
- Handing standard LHR; field reversible to RHR
- Vandal-resistant - Lever is not restricted in the locked position
- UL certified for fire doors
RCIs 1200 and 1300 Series exit devices resolve the conflict between life safety and security. Both1200 Mechanical and 1300 Electric Series exit devices feature a patented latch that rotates to engage and grip the specially designed strike. This unique interlocking grip action secures the door to the jamb without conventional roller strikes or retracting latches. In addition an interlocking mechanism located in the chassis offers a double interlocking system which makes these exit devices virtually impossible totamper with, pry or force open. The attractive lever trim can be used onthe exterior side of the door for access.
Specifications
- Model - 08N-EL
- Description
- Electrified Lever
- Cutout for Cylinder
- For 2-1/8" Stile
- Thru Bolt Mounted 1-13/16"W
- Specify handing
- 24VDC Standard (12VDC optional)
- Finish - 40
08N-EL x 40 Specifications PDF
Dormakaba RCI Exterior Trims for 1200-1300 Rim Exit Devices Ordering Guide PDF
